"INOUE-BALLOON" CATHETER
Balloon Catheter for PTMC (Percutaneous Transvenous Mitral Commissurotomy)
"INOUE-BALLOON" CATHETER(Catalog)
Features
"INOUE-BALLOON" CATHETER is the first non-surgical device for a treatment against mitral stenois.
Use
"INOUE-BALLOON" CATHETER (IBC) is indicated for PTMC (Percutaneous Transvenous Mitral Commissurotomy) in patients with mitral stenosis.
IBC is inserted percutaneously and transvenously into the heart to inflate the hour-glass shape of the balloon part to a barrel shape and thereby expand the mitral valve that has been adhered shut.
Video
Model number, specifications
1.Specification:
| Cat. No. | Balloon Diameter Range | Catheter Size | Patient Height | |
|---|---|---|---|---|
| Fr. Size | Length | |||
| PTMC-30, IMS-30 | 26mm - 30mm | 12Fr. | 70cm | >180cm |
| PTMC-28, IMS-28 | 24mm - 28mm | 12Fr. | 70cm | >160cm |
| PTMC-26, IMS-26 | 22mm - 26mm | 12Fr. | 70cm | >147cm |
| PTMC-24, IMS-24 | 20mm - 24mm | 12Fr. | 70cm | ≦147cm |
| PTMC-22, IMS-22 | 20mm - 22mm | 12Fr. | 70cm | ≦147cm |
| PTMC-20, IMS-20 | 18mm - 20mm | 12Fr. | 70cm | ≦147cm |
| Cat. No. | Description | Size | Length |
|---|---|---|---|
| KMS-1 | Balloon stretching tube | 1.2mm | 80cm |
| DMS-1 | Dilator | 14Fr. | 70cm |
| SMS-1 | Stylet | 0.97mm (0.038") | 80cm |
| GMS-1 | Guidewire | 0.64mm (0.025") | 175cm |
| Cat. No. | Description | Size | Length |
|---|---|---|---|
| NMS-1 | Ruler | 0mm ～ 40mm | ±0.5mm |
*IMS-30, IMS-28, IMS-26, IMS-24, IMS-22, IMS-20 contains the balloon catheterr and syringe only.

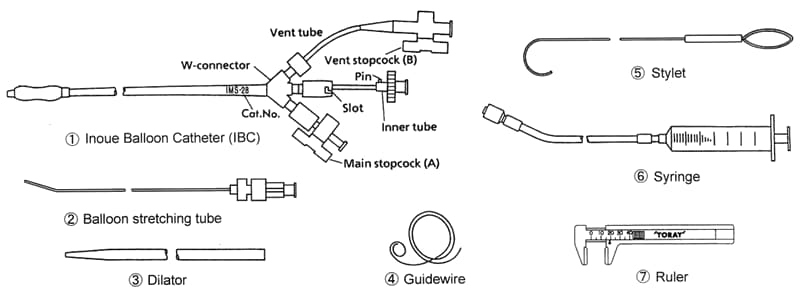

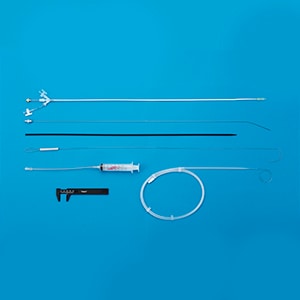

2.Set contents:
| Name of set item | Purpose |
|---|---|
| ①Inoue Balloon Catheter (IBC) | Dilation of valve |
| ②Balloon stretching tube | Elongation of balloon |
| ③Dilator | Dilation of insertion |
| ④Guidewire | Guiding of catheter and dilator |
| ⑤Stylet (Spring) | Directing balloon to valve |
| ⑥Syringe | Inflation of balloon |
| ⑦Ruler | Measurement of balloon diameter |
