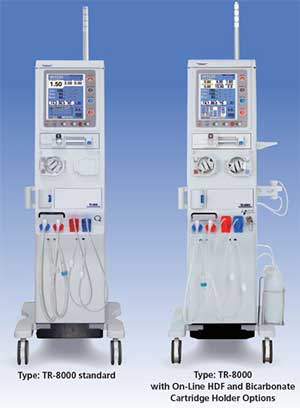

Single Patient Dialysis Machine TR-8000
Single patient dialysis machine
Single Patient Dialysis Machine TR-8000(Catalog)
Features
Supported by the advanced technologies of TORAY, TR-8000 offers comfortable dialysis treatment to patients, easy operation to medical staff and contributes to medical development.
- Easy operability by changing the position of external parts
- - The position of rinse ports, couplers and bicarbonate cartridge was changed and you can operate them without squat.
- - Casters became larger and you can move it by less power.
- Improvement of standard functions
- - The chamber level adjustment has been newly equipped as standard
- - Self-test time became shorter
- Various new options and accessories
- - BVM, Kt/V indicator, Bicarbonate cartridge, etc.
Use
The single patients dialysis machine can perform prescribed dialysis which adjust the dialysate conductivity in accordance with each patient. It mainly consists of Monitor/alarm part, Dialysate supply/UF control part, Extracorporeal blood circuit part, and Electrical control part.
Production sales agency：
Toray Medical Co., Ltd.
Model number, specifications
Technical data
Specifications
| Power supply: | 110-120 / 220-240V, 50/60Hz |
|---|---|
| Max.power consumption: | 1.5 kVA |
| Dimensions (W X H X D): main body only |
322 X 1,378, X 375 mm |
| Weight: | Max. 85 Kg |
| Pressure of supplied water: | 0.1 to 0.3 Mpa |
| Flow rate of supplied water: | 800mL/min or greater |
| Temperature of supplied water: | 5 to 30 ℃ |
| Quality of supplied water: | equivalent to or better than ISO23500 Guidance |
| Range of dialysate temperature regulation: | 33 to 40 ℃ |
| Range of dialysate flow rate regulation: | 300 to 700 mL/min |
| Range of UF rate regulation: | 0.00 to 5.00 L/h |
| Range of dialysate conductivity regulation: | |
| Acetate dialysis and bicarbonate dialysate | 13.0 to 16.0 mS/cm in 1-9 steps (in increments of 0.3mS/cm) |
| Substitution pump rate setting range: | 0.0 to 18.0 L/h (On-Line HDF option) |
| Substitution goal amount setting range: | 0.01 to 99.99 L (On-Line HDF option) |
| Range of blood flow rate regulation: | |
| Inner Diameter 8.0mm | 0, 30 to 600 mL/min |
| Inner Diameter 6.5mm | 0, 20 to 400 mL/min |
| Range of syringe flow regulation: | 0.0 to 9.9 mL/h (with rapid function) |
| Available syringe size: | 10 mL / 20 mL / 30 mL |
| Air bubble detector: | ultrasonic detection system |
| Sensitivity: | Greater than 0.020 mL |
| Greater than 0.3 μL (Continuous air bubbles) | |
| (Under conditions of blood flow rate 200mL/min) | |
| Blood leak detector: | Photoelectric detection system |
| Sensitivity: | Greater than 300 ppm (Ht.32%±2%, 37℃ condition) |
| Disinfection: | Hot water disinfection or chemilcals |
Monitor section
| Dialysate temperature indicator: | 0.0 to 99.9℃ |
|---|---|
| Dialysate flow meter: | 300 to 800 mL/min |
| Venous pressure indicator: | -200 to +400 mmHg |
| Arterial pressure indicator: | -400 to +500 mmHg |
| Dialysate pressure indicator: | -400 to +400 mmHg |
| UF rate indicator: | 0.00 to 5.00 L/h |
| UF goal-setting device: | 0.00 to 40.00 L |
| Syringe pump flow-rate indicator: | 0.0 to 9.9 mL/h |
Safety design
- Status lamp (4 colors)
- Self-test of hydraulic line
- TMP monitor/TMP alarm
- Compliance with IEC60601-1, IEC60601-2-16 requirements
Options
- Automatic Blood Pressure Monitor
- Bicarbonate Cartridge Holder
- On-Line HDF
- On-Line HDF and Substitution shortage sensor
- Data Communications
- Endotoxin Retentive Filter Leak Test Function
- Kt/V Indicaton
- Blood Volume Monitor
Accessories
- Priming funnel
- Holder for ETRF
- ETRF cover
- Handle
- Concentrate tray
- Disinfectant bottles
- Disinfectant bracket
- Concentrate centralized piping bracket
- Holder for BVM
- Nurse call cable
- Baskets for blood pressure monitor cuff
