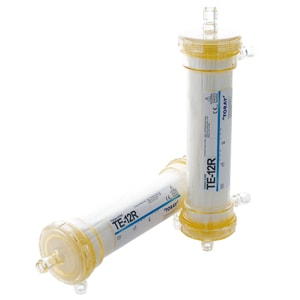

TORAY ETRF TE-12R
Endotoxin retentive filter
Features
Excellent chemical proof type polysulfone is used as a follow fiber, also durability has been improved because its membrane thicker than the previous model and polycarbonate is used for housing material.
Use
This device is a filter for the exclusive use of dialysis treatment in order to remove and catch impurity like as endotoxin in the dialysate.
Model number, specifications
Specifications and performance
TORAY Endotoxin Retentive Filter TE-12R
| Type | TE-12R | |
|---|---|---|
| Fibers | Effective surface area（m2） | 1.2 |
| Membrane thickness（μm） | 60 | |
| Endotoxin Retentive Performance | LRV≧3 | |
| Bacterial Retentive Performance | LRV≧8 | |
LEV: Logarithmic reduction value
Inside diameter：200μm, Material：Polysulfone, Housing material：Polypropylene
Sterilization：Gamma-ray irradiation, Maximum TMP：66kPa（500mmHg）
| Disinfectants | Concentrations（%） | Duration（min.） | Period of use |
|---|---|---|---|
| Sodium hypochlolite | 0.05-0.1 | 20-60 | 100 treatments of 3 months |
| Acetic acid | ≦１ | 20-60 | |
| Peracetic acid | 0.02-0.04 | 20-60 | |
| Hot water（≦85℃）1） | - | 20-60 | 80 treatments of 3 months |
1）the citric acid（concentration:less than 2%）can be used in the hot water.
