Filtryzer BK-U


Filtryzer BK-U

Filtryzer BK-U(Catalog)


Filtryzer BK-U (PMMA membrane) offers excellent biocompatibility, and it gives higher performance for the removal of small and middle molecular weight substances, and efficiently removes of low molecular weight(LMW)protein, such as β2-MG by adsorption.

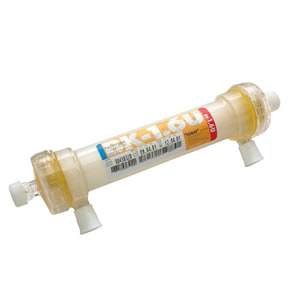

This device is the hollow fiber dialyzer which shall be used in acute or chronic hemo dialysis treatment in order that renal failure patients could remove the excessive water in the body and uric toxins sucha as urea, creatinine, phosphate, β2-MG, etc.

Production sales agency:

Toray Industries, Inc.

Model number, specifications

Filtryzer BK-U:

Type BK-1.6U BK-2.1U
Fibers Effective surface area(m2 1.6 2.1
Membrane thickness(μm) 30
Blood volume(mL) 94 126
UFR in vitro(mL/hr/mmHg)1) 31 40
Clearance in vitro 2)
Urea(mL/min) 187 193
Creatinine(mL/min) 169 179
Phosphate(mL/min) 153 168
Vitamin B12(mL/min) 108 125

Inside diameter:200μm, Material:Polymethylmethacrylate(PMMA), Housing material:Polystyrene
Sterilization:Gamma-ray irradiation, Maximum TMP:66kPa(500mmHg)

  1. Bovine blood in vitro Ht30±3%, P6.0±0.5g/dL, QB=200±4mL/min, Temp:37±1℃, TMP13.3kPa±1.3kPa(100mmHg)
  2. in vitro QB=200±4mL/min, QD=500±10mL/min, F=10±2mL/min, Temp: 37±1℃

Clearances are data with aqueous solution.
